Case CB1150 (EXCAVATOR HYDRAULIC ROCKBREAKER (1/05-))

CE ATTACHMENTS Case CB1150

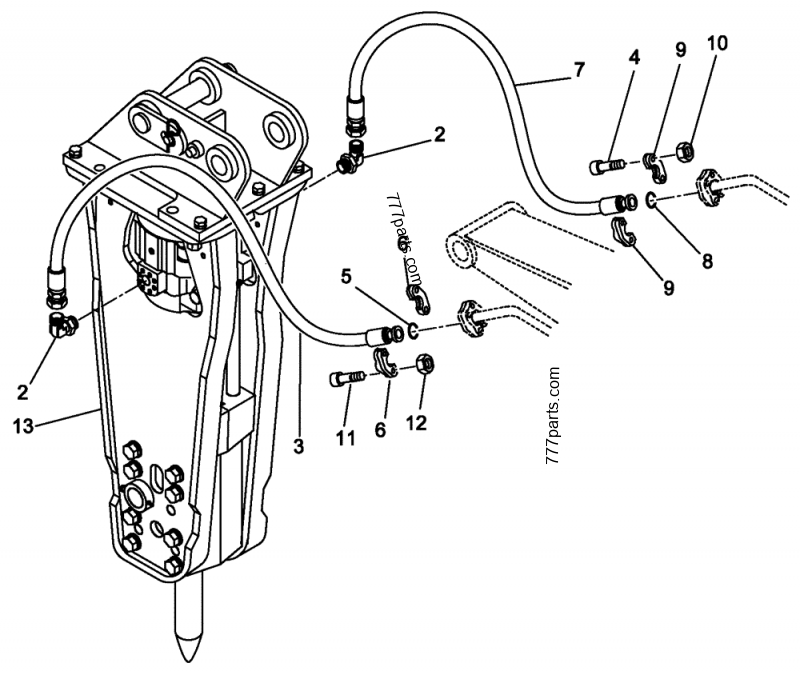

/case/CB1150/m393/s-941.html / 00 COMPLETE MACHINE / HYDRAULIC CIRCUIT - HYDRAULIC ROCKBREAKER - VERSION : BRETEC CB1150 / CB1150S
588 / 688 / 788 / WX150

Select section

All

• All

Subsection

All

• All

Unit

Select group

6

9

7

5

2

13

9

12

2

4

3

6

11

10

8

Subscribe to get access to part numbers.

Unlock Access

#	Part No.	Description	Qty
	34***A1	SET OF PARTS	1
	--***--	Consists Of Ref. Numbers 2-9
2	34***A1	ELBOW	2
3	34***A1	HOSE; 1700 mm (67 in)	1
4	86***50	HEX SOC SCREW,M10 x 50mm, Cl 8.8	4
5	34***A1	O-RING; dia 37	1
6	34***A1	CLAMP BRACKET	1
	--***--	Set Of 2
7	34***A1	HOSE; 1700 mm (67 in)	1
8	34***A1	O-RING; dia 25	1
9	34***A1	CLAMP BRACKET	1
	--***--	Set Of 2
10	B5***55	NUT; M10	4
11	--***--	M12 x 50	4
12	33***75	NUT,M12, Cl 10	4
13	REF	INSTRUCTION; Rockbreaker	1
	--***--	See Page(s) 04-03-00, 04-03-01
