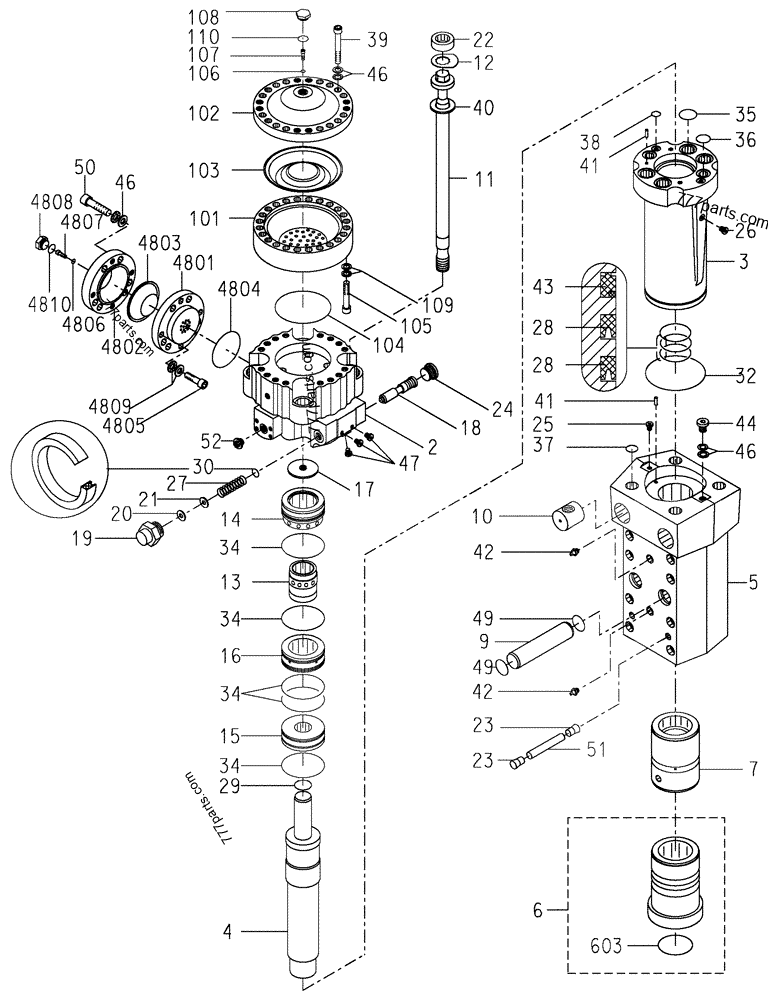

/case/CB1150S/m394/s-942.html / 00 COMPLETE MACHINE / MECHANISM - HYDRAULIC ROCKBREAKER - VERSION : BRETEC CB1150S
588 / 688 / 788 / 9013 / CX130 / CX160 / CX180 / WX120 / WX150

Select section

All

• All

Subsection

All

• All

Unit

Select group

13

18

40

46

35

4801

14

101

20

102

2

46

52

4808

46

49

4802

105

42

36

15

7

16

49

106

28

26

27

107

5

38

34

43

25

4810

34

108

23

11

103

32

51

110

104

603

109

30

34

19

9

42

41

22

4804

24

21

4805

39

23

6

4807

29

4806

4809

10

12

37

17

4

41

4803

34

3

47

44

28

50

Subscribe to get access to part numbers.

Unlock Access

#	Part No.	Description	Qty
2	34***A1	VALVE BODY	1
3	34***A1	BARREL	1
	--***--	Consists Of Ref. Number 26
4	34***A1	PISTON	1
5	34***A1	HEAD	1
6	34***A1	BUSHING	1
	--***--	Consists Of Ref. Number 603
7	34***A1	BUSHING	1
9	34***A1	PIN	2
10	34***A1	NUT	4
11	34***A1	TRUSS ROD	4
12	34***A1	PLATE	4
13	34***A1	CONTROL VALVE	1
14	34***A1	BUSHING	1
15	34***A1	RING	1
16	34***A1	RING	1
17	34***A1	PLATE	1
18	34***A1	SPOOL	1
19	34***A1	CAP	1
20	34***A1	SHIM; 1,0 mm
21	34***A1	SHIM; 0,5 mm
22	34***A1	RING	4
23	34***A1	PLUG	4
24	34***A1	PLUG; 1 in	1
25	35***A1	PLUG; 3/8	1
26	34***A1	PLUG; 1/8	1
27	34***A1	SPRING	1
28	34***A1	SEAL; dia 90	2
29	34***A1	SEAL; dia 50	1
30	34***A1	SEAL; dia 22	1
32	34***A1	O-RING; dia 170	1
34	34***A1	O-RING; dia 120	5
35	34***A1	O-RING; dia 44	4
36	34***A1	O-RING; dia 34	2
37	34***A1	O-RING; dia 42	4
38	34***A1	O-RING; dia 20	2
39	34***A1	HEX SOC SCREW; M20 x 130	16
40	34***A1	WASHER	4
41	83***25	DOWEL,M8 x 25mm OAL	2
42	21***14	LUBE NIPPLE,1/4" NPTF	2
43	34***A1	SEAL; dia 90	1
44	34***A1	PLUG; 1/2	1
46	34***A1	LOCK WASHER; M20	23
47	34***A1	PLUG	3
48	34***A1	ACCUMULATOR	1
	--***--	Consists Of Ref. Numbers 4801-4810
49	34***A1	O-RING; dia 49	4
50	34***A1	HEX SOC SCREW; M20 x 90	6
51	34***A1	PIN	2
52	34***A1	PLUG; 1 in	2
	34***A1	ACCUMULATOR	1
	--***--	Consists Of Ref. Numbers 101-110
101	34***A1	BODY	1
102	34***A1	COVER	1
103	34***A1	DIAPHRAGM	1
104	34***A1	O-RING; dia 164	1
105	34***A1	HEX SOC SCREW; M20 x 100	8
106	34***A1	RING	1
107	34***A1	PLUG	1
108	34***A1	PLUG	1
109	34***A1	LOCK WASHER; M20	8
110	34***A1	O-RING; dia 23	1
603	34***A1	SEAL; dia 95	1
4801	34***A1	BODY	1
4802	34***A1	COVER	1
4803	34***A1	DIAPHRAGM	1
4804	34***A1	O-RING; dia 120	1
4805	34***A1	HEX SOC SCREW; M16 x 60	4
4806	34***A1	RING; dia 9	1
4807	34***A1	PLUG	1
4808	34***A1	PLUG	1
4809	34***A1	LOCK WASHER; M16	4
4810	34***A1	O-RING; dia 23	1
	34***A1	SEAL KIT	1
	--***--	Consists Of Ref. Numbers 28-38, 43, 49, 104, 106, 110, 603, 4804, 4806, 4810
