Case CB135S (HYDRAULIC HAMMER (1/05-))

CE ATTACHMENTS Case CB135S
/case/CB135S/m396/s-944.html / No Description / MECHANISM - HYDRAULIC HAMMER CB135 TYPE S

Select section

  • All

Subsection

  • All

Unit

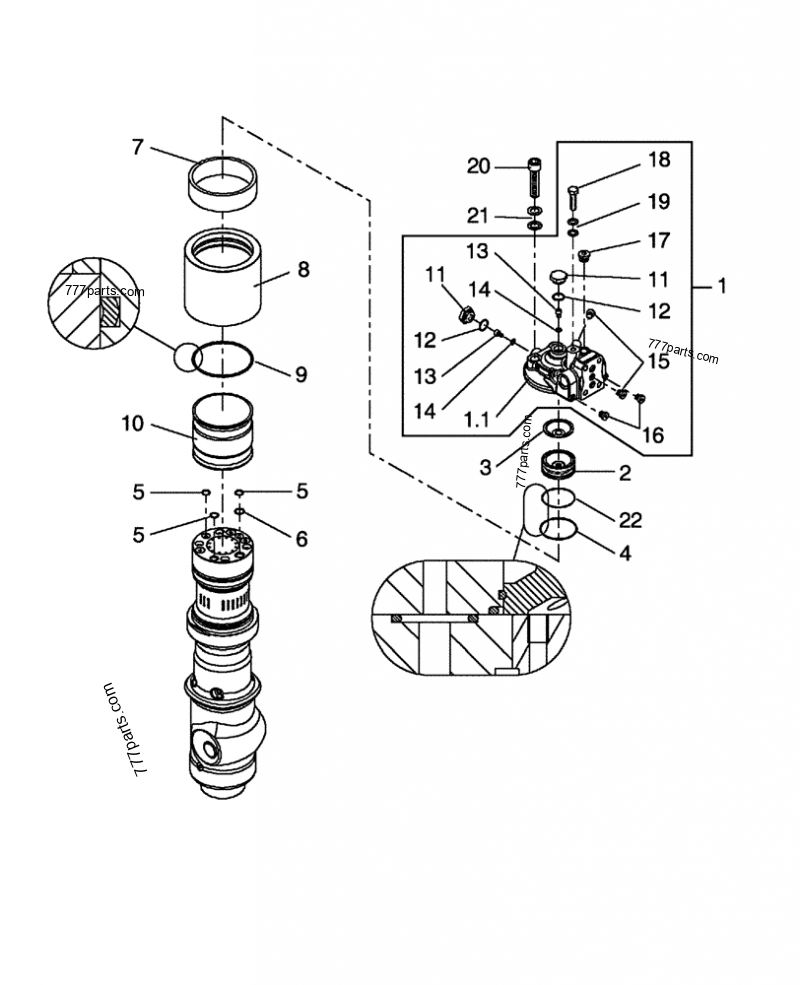

Part diagram MECHANISM - HYDRAULIC HAMMER CB135 TYPE S - CE ATTACHMENTS Case CB135S (HYDRAULIC HAMMER (1/05-)) | 777parts.com

Subscribe to get access to part numbers.

Unlock Access
# Part No. Description Qty
1 73***84 COVER 1
--***-- Include(s) Ref. Numbers : 1.1, 15 To 19
1.1 NSS NOT SOLD SEPARAT; Cover 1
2 73***71 ACCUMULATOR 1
3 73***68 MEMBRANE 1
4 34***A1 O-RING; D120 1
--***-- Is Included In Package Seals Part Number 73327589, See Page : NH135-00 08
5 35***A1 O-RING; D19 3
--***-- Is Included In Package Seals Part Number 73327589, See Page : NH135-00 08
6 35***A1 O-RING; D24 1
--***-- Is Included In Package Seals Part Number 73327589, See Page : NH135-00 08
7 73***76 BUSHING 1
8 73***77 COVER 1
9 73***97 SEAL 1
--***-- Is Included In Package Seals Part Number 73327589, See Page : NH135-00 08
10 73***69 MEMBRANE 1
11 34***A1 PLUG 2
12 34***A1 O-RING; D23 2
--***-- Is Included In Package Seals Part Number 73327589, See Page : NH135-00 08
13 34***A1 PLUG 2
14 34***A1 RING; 8-13.9-1 2
--***-- Is Included In Package Seals Part Number 73327589, See Page : NH135-00 08
15 35***A1 PLUG; R3/8 2
16 34***A1 PLUG; R1/4 2
17 34***A1 PLUG; R1/2 1
18 35***A1 HEX SOC SCREW; M16x30-8.8 ISO 4017 1
19 34***A1 LOCK WASHER; M16 NORD-LOCK 1
20 73***93 SCREW; M24x110-8.8 ISO 4762 4
21 85***13 LOCK WASHER; M24 NORD-LOCK 4
22 73***96 SEAL; D114 1
--***-- Is Included In Package Seals Part Number 73327589, See Page : NH135-00 08
