Case CB135S (HYDRAULIC HAMMER (1/05-))

CE ATTACHMENTS Case CB135S
/case/CB135S/m396/s-944.html / No Description / MECHANISM - HYDRAULIC HAMMER CB135 TYPE S

Select section

  • All

Subsection

  • All

Unit

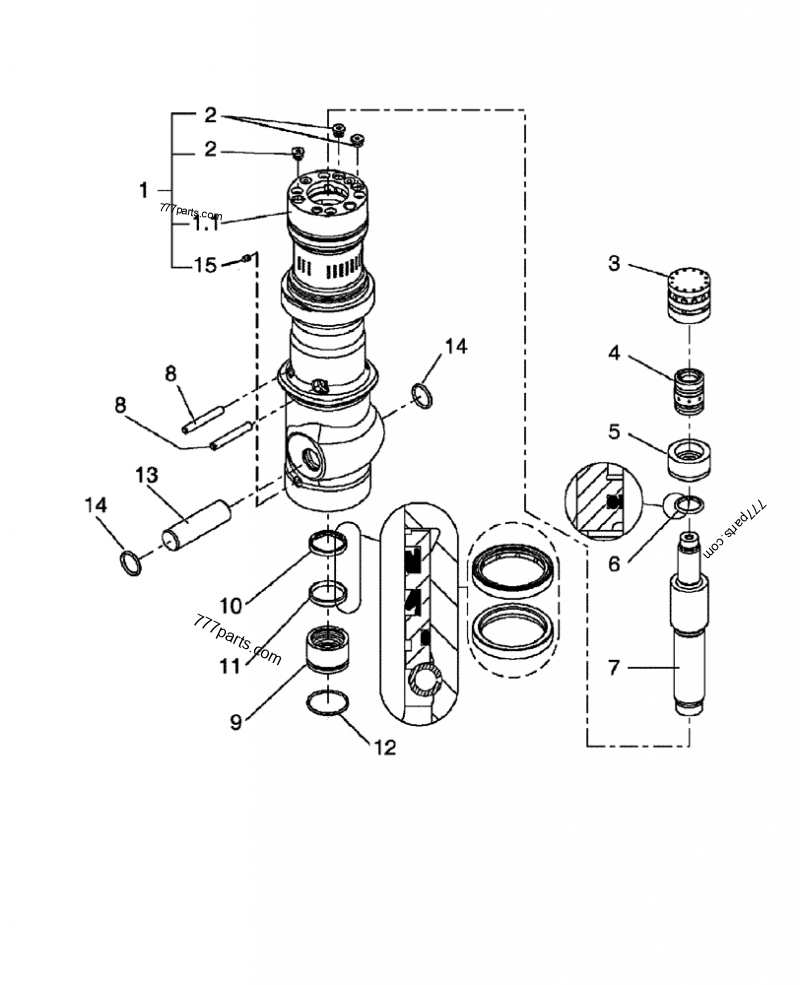

Part diagram MECHANISM - HYDRAULIC HAMMER CB135 TYPE S - CE ATTACHMENTS Case CB135S (HYDRAULIC HAMMER (1/05-)) | 777parts.com

Subscribe to get access to part numbers.

Unlock Access
# Part No. Description Qty
1 73***70 CYLINDER 1
--***-- Include(s) Ref. Numbers : 1.1, 2, 15
1.1 NSS NOT SOLD SEPARAT; Cylinder 1
2 34***A1 PLUG; R1/2 3
3 73***74 COVER 1
4 73***73 CONTROL VALVE 1
5 73***72 RING 1
6 82***61 SEAL 1
--***-- Is Included In Package Seals Part Number 73327589, See Page : NH135-00 08
7 73***78 PISTON 1
8 73***70 COTTER PIN; 16x120 ISO 8752 2
9 73***79 SEAL 1
10 73***94 SEAL 1
--***-- Is Included In Package Seals Part Number 73327589, See Page : NH135-00 08
11 73***92 SEAL 1
--***-- Is Included In Package Seals Part Number 73327589, See Page : NH135-00 08
12 73***91 SEAL; D94 1
--***-- Is Included In Package Seals Part Number 73327589, See Page : NH135-00 08
13 73***75 PIN 1
14 73***95 SEAL; D50 2
--***-- Is Included In Package Seals Part Number 73327589, See Page : NH135-00 08
15 86***04 LUBE NIPPLE,1/4" x .56" lg, Drive; R1/8 1
