Case CB140 (BRETEC HYDRAULIC ROCKBREAKER (1/05-))

CE ATTACHMENTS Case CB140
/case/CB140/m397/s-945.html / No Description / HYDRAULIC ROCKBREAKER, KUBOTA DIPPERSTICK (CB140), 15 / 16, VERSION : BRETEC

Select section

All

• All

Subsection

All

• All

Unit

Select group

7

10B

5

12

4

4

1

8

3

5

11

1

10A

2

5

13

6

9

4

Subscribe to get access to part numbers.

Unlock Access

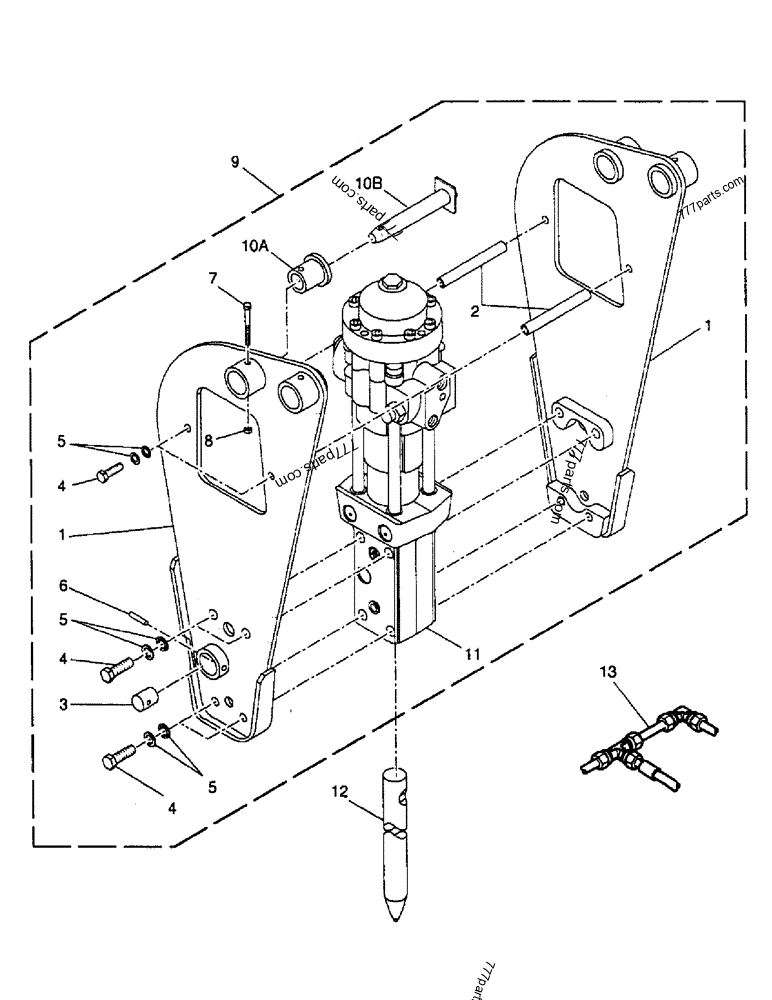

#	Part No.	Description	Qty
1	NSS	NOT SOLD SEPARAT; Plate	1
	--***--	Part of Hammer, P/N 6011569M91
2	NSS	NOT SOLD SEPARAT; Rod, Truss	2
	--***--	Part of Hammer, P/N 6011569M91
3	60***M1	HITCH DAMPER; Stop	1
	--***--	Part of Hammer, P/N 6011569M91
4	60***M1	SCREW; M16 x 50; 10.9	12
	--***--	Part of Hammer, P/N 6011569M91
5	34***A1	LOCK WASHER; Washer, Lock M16	12
	--***--	Part of Hammer, P/N 6011569M91
6	34***A1	SPLIT PIN	1
	--***--	Part of Hammer, P/N 6011569M91
7	60***M1	SCREW; M8 x 80	2
	--***--	Part of Hammer, P/N 6011569M91
8	60***M1	NUT; M8	2
	--***--	Part of Hammer, P/N 6011569M91
9	60***91	HAMMER SYSTEM KIT; Consists of: ref. nos. 1-8, 10A, 10B	1
10	NSS	NOT SOLD SEPARAT; Support Assy, Not Illustrated, Consists of: ref. nos. 10A, 10B	1
10A	60***M1	BUSHING; dia 25	4
	--***--	Part of Hammer, P/N 6011569M91
	--***--	Part of Support Assembly, not serviced separately
10B	60***91	LARGE PIN; PIN, LARGE dia 25	2
	--***--	Part of Hammer, P/N 6011569M91
	--***--	Part of Support Assembly, not serviced separately
11	REF	INSTRUCTION; Hammer, See Figure : 2-8	1
12	REF	INSTRUCTION; Stake, See Figure : 2-12	1
13	REF	INSTRUCTION; Circuit, Hydraulic, See Figure : 2-6	1
	--***--	Decal, Not Illustrated	1
