Case CB150 (HYDRAULIC HAMMER (1/05-))

CE ATTACHMENTS Case CB150
/case/CB150/m400/s-948.html / No Description / HYDRAULIC HAMMER CB150 TYPE S
CX130, CX135SR, CX160, CX160B, CX180, CX180B, WX120, WX125, WX145, WX165

Select section

All

• All

Subsection

All

• All

Unit

Select group

16

12

6

13

5

10

11

1

4

5

8

14

11

9

1

15

2

3

7

4

Subscribe to get access to part numbers.

Unlock Access

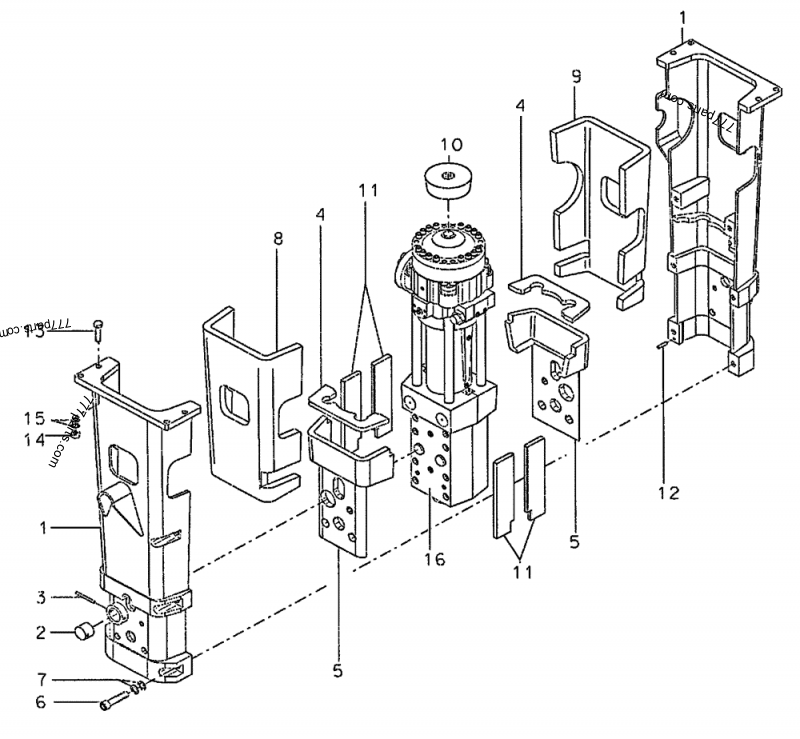

#	Part No.	Description	Qty
1	82***44	PLATE	1
2	34***A1	HITCH DAMPER	2
3	34***A1	COTTER PIN; 10x112 DIN 94	2
4	82***54	PAD	2
5	82***02	DAMPER	2
6	82***67	HEX SOC SCREW; M24x90-8.8 DIN 912	6
7	85***13	LOCK WASHER; M24 NORD-LOCK	6
8	82***03	EXHAUST MANIFOLD	1
9	82***04	EXHAUST MANIFOLD	1
10	82***58	STOP; Hose Kit	1
11	82***55	PLATE	4
12	B5***53	PIN; 10m6x70 DIN 6325	2
13	41***46	BOLT,Hex, M20 x 2.5 x 90mm, Cl 8.8; M20x90-8.8 DIN 931	8
14	97***94	NUT,Hex, M20, Cl 8; M20-8 DIN 934	8
15	34***A1	LOCK WASHER; M20 NORD-LOCK	16
16	NSS	NOT SOLD SEPARAT; Mecanism	1
	--***--	See Page : NH150-00 05
	82***59	DECAL; Label Set	1
