Case CB240S (HYDRAULIC HAMMER (1/05-))

CE ATTACHMENTS Case CB240S
/case/CB240S/m405/s-954.html / No Description / MECHANISM - HYDRAULIC HAMMER CB240 TYPE S

Select section

  • All

Subsection

  • All

Unit

40
1.8
80
74
12
51
2
65
1.1
32
1.10
39
3
24
63
23
66
47
54
39
76
67
11
68
5
18
89
1
69
66
35
52
66
13
60
84
41
11
44
18
20
10
62
63
31
34
78
10
8
1.5
51
82
73
1.3
4
14
84
6
86
71
52
11
11
42
79
91
38
40
84
81
90
65
1.9
50
1.2
22
37
1.7
63
87
21
74
61
19
9
46
87
15
64
79
1.4
25
7
75
10
65
17
1.6
77
43
55
30
85
16
10
36
88
45
70
26
33
72
64
83
9
50
17
89
53
3

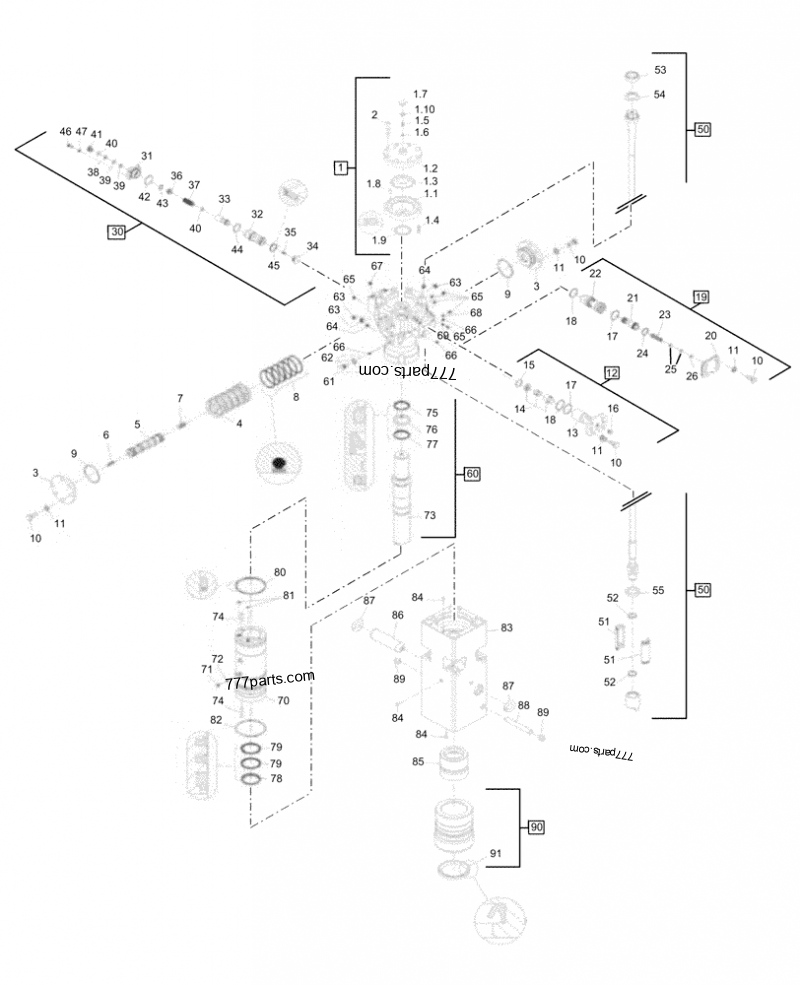

Part diagram MECHANISM - HYDRAULIC HAMMER CB240 TYPE S - CE ATTACHMENTS Case CB240S (HYDRAULIC HAMMER (1/05-)) | 777parts.com

Subscribe to get access to part numbers.

Unlock Access
# Part No. Description Qty
1 73***14 ACCUMULATOR 1
--***-- Include(s) Ref. Numbers : 1.1 To 1.10
1.1 73***99 BODY; Bottom 1
1.1 34***A1 O-RING; D23 1
1.2 73***00 COVER; Cover 1
1.3 34***A1 DIAPHRAGM 1
1.4 73***78 SCREW 16
1.5 14***45 SCREW; Filling 1
1.6 34***A1 RING; U8.7-14-1 1
1.7 82***48 PLUG 1
1.8 35***A1 PIN; 10M6x30 DIN 6325 2
1.9 35***A1 SEAL; D114 1
2 73***93 SCREW 8
3 35***A1 COVER 2
4 73***02 BUSHING 1
5 73***23 SPOOL 1
6 73***24 SPOOL 1
7 73***25 SPOOL 1
8 73***13 O-RING 6
9 34***A1 O-RING; D85 2
10 35***A1 SCREW 16
11 34***A1 LOCK WASHER; M16 NORD-LOCK 16
12 35***A1 CHECK VALVE 1
--***-- Include(s) Ref. Numbers : 10 To 18
13 35***A1 VALVE BODY 1
14 35***A1 CHECK VALVE 1
15 35***A1 RING 1
16 34***A1 PLUG; R1/4 1
17 35***A1 O-RING 2
18 34***A1 O-RING 2
19 73***21 RESTRICTOR VALVE 1
--***-- Include(s) Ref. Numbers : 17, 18, 20 To 26
20 73***69 COVER 1
21 73***82 SPOOL 1
22 73***20 VALVE BODY 1
23 73***05 SPRING 1
25 60***M1 SHIM 2
26 60***M1 SHIM 1
30 73***08 VALVE, PRESSURE CONT 1
--***-- Include(s) Ref. Numbers : 31 To 45
31 73***07 COVER 1
32 73***37 VALVE BODY 1
33 73***38 SPOOL 1
34 35***A1 GUIDE 1
35 35***A1 SPOOL 1
36 73***12 GUIDE 1
37 35***A1 SPRING 1
38 34***A1 SHIM
39 34***A1 SHIM
40 35***A1 SHIM; S = 1.25
41 73***33 PLUG 1
42 35***A1 O-RING; D55 1
43 35***A1 O-RING 1
44 34***A1 O-RING; D49 1
45 35***A1 SEAL; D44 1
46 35***A1 SCREW; M12x30-8.8 DIN 933 4
47 35***A1 LOCK WASHER; M12 NORD-LOCK 4
50 73***68 TIE-ROD 4
51 73***18 DAMPER 8
52 73***03 CABLE TIE 8
53 35***A1 RING 4
54 35***A1 PLATE 4
55 73***17 SPACER 4
60 73***94 VALVE BODY 1
--***-- Include(s) Ref. Numbers : 61 To 69
61 73***22 BREATHER 1
--***-- Include(s) Ref. Number : 62
62 35***A1 O-RING; D24 1
63 34***A1 PLUG; R1/2 3
64 35***A1 PLUG; R3/8 2
65 34***A1 PLUG; R1/4 6
66 34***A1 PLUG 3
67 35***A1 BREATHER 1
68 73***92 NOZZLE 1
69 73***85 NOZZLE 1
70 73***95 BARREL 1
--***-- Include(s) Ref. Numbers : 71, 72
71 34***A1 PLUG 1
72 73***06 SCREW 1
73 73***98 PISTON 1
74 B5***53 PIN 2
75 73***09 WIPER SEAL 1
76 82***76 SEAL; D85 1
77 82***29 SEAL 1
78 73***96 WIPER SEAL 1
79 73***10 O-RING 2
80 73***26 O-RING 1
81 35***A1 O-RING; D14 2
82 35***A1 O-RING 1
83 73***42 HEAD 1
--***-- Include(s) Ref. Number : 84
84 82***35 PLUG 3
85 73***19 GUIDE BUSHING; Upper tool 1
86 73***58 PIN 1
87 73***59 RING 2
88 35***A1 PIN; D25 1
89 73***49 PLUG 2
90 73***53 BUSHING; Lower tool 1
--***-- Include(s) Ref. Number : 91
91 73***27 O-RING 1
73***29 SEAL 1
--***-- Include(s) Ref. Numbers : 1.6, 1.9, 1.10, 8, 9, 17, 18, 24, 42 To 45, 62, 75 To 82 And See Page : NH240-00 07
