Case CB260 (HYDRAULIC HAMMER (1/05-))

CE ATTACHMENTS Case CB260

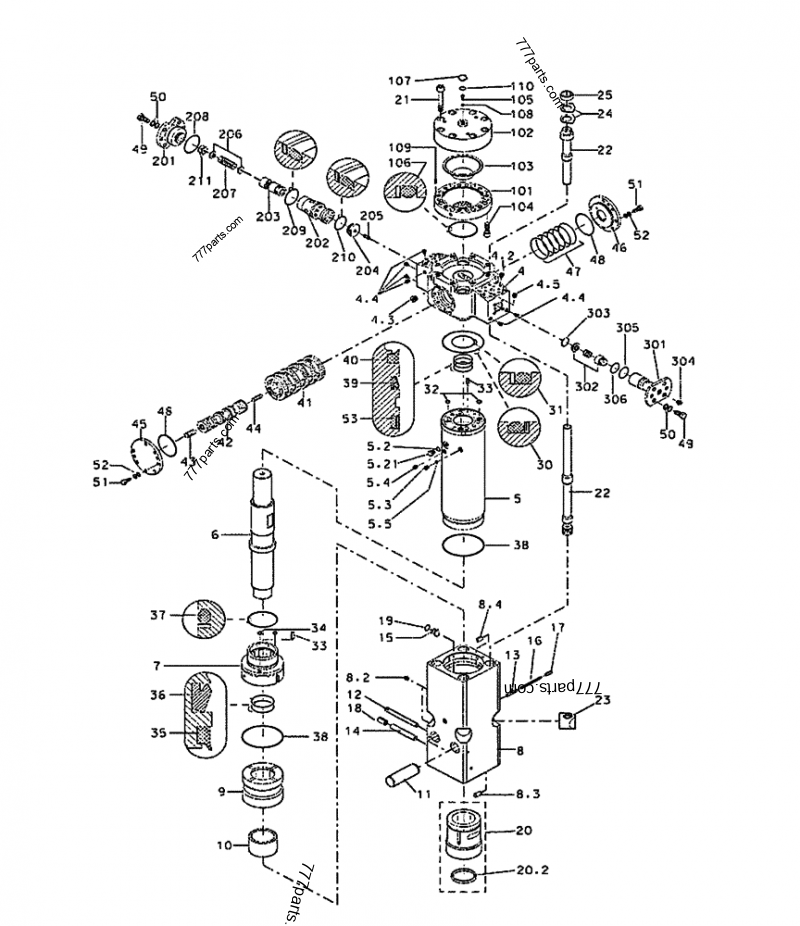

/case/CB260/m406/s-955.html / No Description / MECHANISM - HYDRAULIC HAMMER CB260S
CX210, CX210B, CX225SR, CX230, CX240, CX240B, CX290, CX290B, WX210, WX240

Select section

All

• All

Subsection

All

• All

Unit

Select group

19

207

21

41

102

4.4

9

8.4

301

17

208

211

101

8

48

53

50

16

8.3

37

47

209

302

30

35

33

15

106

206

50

49

13

43

39

6

103

105

8.2

48

22

11

5.4

38

4.4

110

108

52

7

304

5.21

52

303

5

306

44

36

14

38

5.5

104

203

5.2

33

109

18

4.2

210

201

25

45

24

31

204

4.5

34

4.3

12

4

23

46

42

10

205

49

20

32

22

305

5.3

51

202

20.2

40

107

Subscribe to get access to part numbers.

Unlock Access

#	Part No.	Description	Qty
1	35***A1	ACCUMULATOR	1
	--***--	Include(s) Ref. Numbers : 101 To 110
2	35***A1	CHECK VALVE; Higt Pressure	1
	--***--	Include(s) Ref. Numbers : 201 To 211
3	35***A1	CHECK VALVE	1
	--***--	Include(s) Ref. Numbers : 301 To 306
4	35***A1	VALVE BODY	1
	--***--	Include(s) Ref. Numbers : 4.2 To 4.5
4.2	35***A1	BREATHER	1
4.3	34***A1	PLUG; R3/4	1
4.4	34***A1	PLUG; R1/4	6
4.5	35***A1	PLUG; R3/8	1
5	82***39	ADJUSTING SLEEVE	1
	--***--	Include(s) Ref. Numbers : 5.2, 5.3 , 5.4, 5.5
5.2	35***A1	BREATHER	1
	--***--	Include(s) Ref. Number : 5.21
5.21	35***A1	O-RING; D24	1
5.3	35***A1	PLUG; R3/8	1
5.4	34***A1	PLUG; R1/4	2
5.5	35***A1	PLUG; DIN 906-R1/4	1
6	82***17	PISTON	1
7	82***16	SEAL	1
8	82***21	FRONT PLATE	1
	--***--	Include(s) Ref. Numbers : 8.2, 8.3, 8.4
8.2	35***A1	LUBE NIPPLE; R1/4	2
8.3	82***30	PLUG	1
8.4	82***18	PLUG	1
9	82***20	THRUST RING	1
10	82***19	GUIDE BUSHING	1
11	35***A1	PIN; D60	2
12	35***A1	PIN; D20	1
13	35***A1	PIN; D12	1
14	35***A1	PIN; D25	1
15	35***A1	WEDGE	1
16	35***A1	SPRING	1
17	82***75	COTTER PIN; D12x60 DIN 1481	1
18	35***A1	SPLIT PIN; Connex S 25x60	1
19	35***A1	O-RING; D24	1
20	82***15	GUIDE BUSHING	1
	--***--	Include(s) Ref. Number : 20.2
20.2	82***14	SEAL	1
21	35***A1	SCREW	8
22	35***A1	TRUSS ROD	4
23	35***A1	NUT	4
24	35***A1	PLATE	8
25	35***A1	RING	4
30	35***A1	SEAL; D194	1
31	35***A1	SEAL; D100	1
32	35***A1	O-RING; D19	2
33	35***A1	PIN; 10m6x30 DIN 6325	2
34	35***A1	O-RING; D13	2
35	35***A1	WIPER SEAL; D110	1
36	82***74	SEAL; D110	1
37	35***A1	SEAL; D150	1
38	82***72	SEAL; D190	2
39	82***73	SEAL; D90	1
40	35***A1	WIPER SEAL; D90	1
41	35***A1	BUSHING	1
42	35***A1	SPOOL; D50	1
43	35***A1	SPOOL; D20	1
44	35***A1	SPOOL; D15	1
45	35***A1	COVER	1
46	35***A1	COVER	1
47	35***A1	SEAL; D110	6
48	34***A1	O-RING; D105	2
49	35***A1	SCREW; M16x35-8.8 DIN 933	8
50	34***A1	LOCK WASHER; M16 NORD-LOCK	8
51	35***A1	SCREW; M12x30-10.9 DIN 933	14
52	35***A1	LOCK WASHER; M12 NORD-LOCK	14
53	82***38	SEAL; D89	1
101	35***A1	BODY; Bottom	1
102	35***A1	COVER; Cover	1
103	35***A1	DIAPHRAGM	1
104	35***A1	SCREW	16
105	35***A1	PLUG	1
106	35***A1	SEAL; D114	1
107	82***48	PLUG	1
108	34***A1	RING; U8.7-14-1	1
109	35***A1	PIN; 10m6x24 DIN 6325	2
110	34***A1	O-RING; D23	1
201	35***A1	COVER	1
202	35***A1	VALVE BODY	1
203	35***A1	SPOOL	1
204	35***A1	GUIDE	1
205	35***A1	SPOOL; D15	1
206	35***A1	GUIDE	2
207	35***A1	SPRING	1
208	35***A1	O-RING; D75	1
209	35***A1	SEAL; D65	1
210	35***A1	SEAL; D55	1
211	35***A1	SHIM; S=1.5
211	35***A1	SHIM; S=1.25
211	35***A1	SHIM; S=0.9
301	35***A1	VALVE BODY	1
302	35***A1	CHECK VALVE	1
303	35***A1	RING; B38 DIN7993	1
304	34***A1	PLUG; R1/4	1
305	35***A1	O-RING; D46	1
306	34***A1	O-RING; D44	1
	82***13	SEAL KIT
	--***--	Include(s) Ref. Numbers : 5.21, 19, 30, 31, 34 To 40, 47, 48, 58, 106, 108 And 110
