Case CB32 (HYDRAULIC HAMMER (1/05-))

CE ATTACHMENTS Case CB32
/case/CB32/m412/s-961.html / No Description / HYDRAULIC HAMMER CB32 TYPE STANDARD
CX16B, CX18B, CX20B, CX22B, CX27B, CX31B

Select section

Subsection

Unit

1
4.1
3
4.1
4
5
4.2
4.2
2

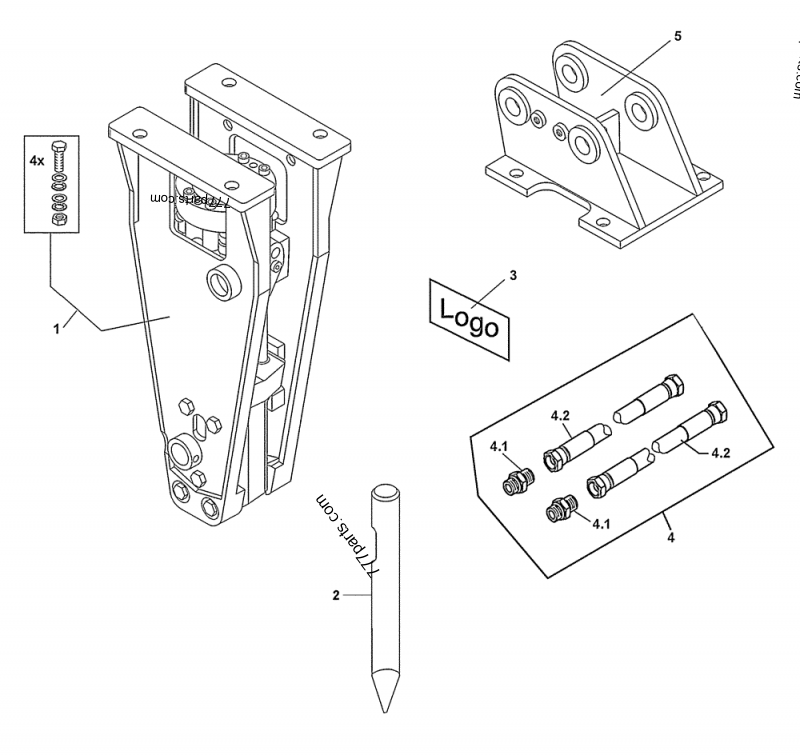

Part diagram HYDRAULIC HAMMER CB32  TYPE STANDARD - CE ATTACHMENTS Case CB32 (HYDRAULIC HAMMER (1/05-)) | 777parts.com

Subscribe to get access to part numbers.

Unlock Access
# Part No. Description Qty
1 82***12 PICK HAMMER; Hammer, Pick 1
--***-- Include(s) Ref. Number : 2 And Page(s) NH032-00 04, NH032-00 07, NH032-00 08
2 87***47 CHISEL 1
--***-- See Page(s) : NH032-00 08
3 82***34 DECAL 2
4 82***06 HOSE KIT; 1800 mm 1
--***-- Include(s) Ref. Numbers : 4.1, 4.2, Only for CX16B, CX18B, CX20B, CX22B, CX27B, CX31B
4.1 87***71 FITTING 2
4.2 NSS NOT SOLD SEPARAT; Flexible 2
5 82***25 SUPPORT; Direct Fit 1
--***-- Only for CX16B, CX18B.
5 72***89 PLATE; Quick Hitch 1
--***-- Only for CX16B, CX18B.
5 82***26 SUPPORT; Direct Fit 1
--***-- Only for CX20B, CX22B, CX27B.
5 82***27 SUPPORT; Direct Fit 1
--***-- Only for CX31B.
5 72***90 PLATE; Quick Hitch 1
--***-- Only for CX20B, CX22B, CX27B, CX31B.
