Case CB320 (HYDRAULIC HAMMER (1/05-))

CE ATTACHMENTS Case CB320
/case/CB320/m413/s-962.html / No Description / MECHANISM - HYDRAULIC HAMMER CB320S
CX240 LC, CX240B LC, CX290, CX290B, CX330, CX350

Select section

  • All

Subsection

  • All

Unit

45
107
21
19
306
24
51
26
58
208
46
104
31
12
51
14
202
39
47
53
34
210
50
30
16
302
28
9
203
304
44
101
51
110
29
204
32
20
25
8
55
13.2
53
51
102
23
7
32
35
205
109
53
38
301
211
11
209
5
36
9.2
52
53
106
50
207
33
103
17
6
13
55.2
9.3
43
108
34
40
10
201
206
37
15
46
50
9.4
41
49
50
57
4
18
105
303
10
305
22

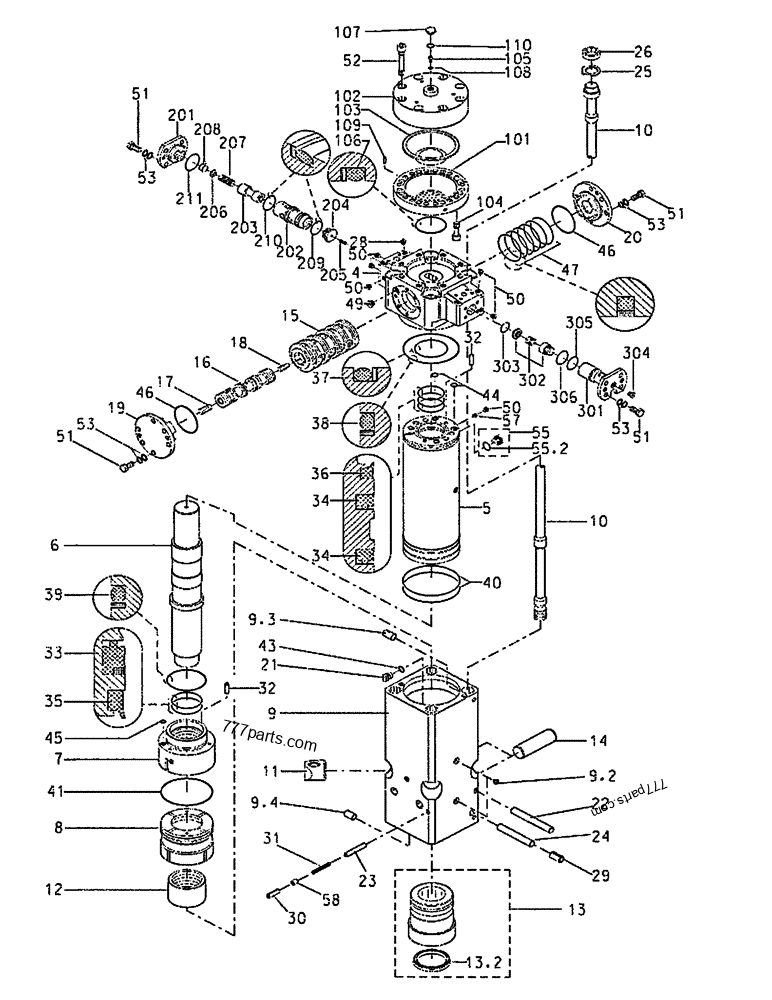

Part diagram MECHANISM - HYDRAULIC HAMMER CB320S - CE ATTACHMENTS Case CB320 (HYDRAULIC HAMMER (1/05-)) | 777parts.com

Subscribe to get access to part numbers.

Unlock Access
# Part No. Description Qty
1 35***A1 ACCUMULATOR 1
--***-- Include(s) Ref. Numbers : 101 To 110
2 35***A1 CHECK VALVE; Higt Pressure 1
--***-- Include(s) Ref. Numbers : 201 To 211
3 35***A1 CHECK VALVE 1
--***-- Include(s) Ref. Numbers : 301 To 306
4 35***A1 BODY 1
5 35***A1 BARREL 1
6 35***A1 PISTON 1
7 35***A1 CARRIER FLANGE SEAL 1
8 35***A1 THRUST RING 1
9 82***31 HEAD 1
--***-- Include(s) Ref. Numbers : 9.2, 9.3, 9.4
9.2 35***A1 LUBE NIPPLE; G1/4 2
9.3 82***29 PLUG 1
9.4 82***30 PLUG 1
10 35***A1 TRUSS ROD 4
11 35***A1 NUT 4
12 35***A1 BUSHING 1
13 35***A1 BUSHING 1
--***-- Include(s) Ref. Number : 13.2
13.2 35***A1 SEAL 1
14 35***A1 PIN; D63 2
15 82***40 GUIDE BUSHING 1
16 35***A1 SPOOL 1
17 35***A1 SPOOL 1
18 35***A1 SPOOL 1
19 35***A1 COVER 1
20 35***A1 COVER 1
21 35***A1 WEDGE 1
22 35***A1 PIN; D30 1
23 35***A1 PIN; D20 1
24 35***A1 PIN; D30 1
25 35***A1 PLATE 4
26 35***A1 RING 4
28 35***A1 BREATHER 1
29 35***A1 SPLIT PIN; D30x60 1
30 35***A1 SPLIT PIN; 21x60 DIN 1481 1
31 35***A1 SPRING 1
32 35***A1 PIN; 16m6x60 DIN 6325 2
33 35***A1 SEAL; D125 1
34 35***A1 SEAL; D106 2
35 35***A1 WIPER SEAL; D125 1
36 35***A1 WIPER SEAL; D106 1
37 35***A1 SEAL; D130 1
38 35***A1 SEAL; D230 1
39 35***A1 SEAL; D165 1
40 35***A1 O-RING; D229 2
41 35***A1 O-RING; D209 1
43 35***A1 O-RING; D24 1
44 35***A1 O-RING; D21 2
45 35***A1 O-RING; D19 1
46 34***A1 O-RING; D105 2
47 35***A1 SEAL; D110 6
49 34***A1 PLUG; G3/4 1
50 35***A1 PLUG; G3/8 6
51 35***A1 SCREW; M16x35-8.8 DIN 933 20
52 35***A1 SCREW 8
53 34***A1 LOCK WASHER; M16 NORD-LOCK 20
55 35***A1 BREATHER 1
--***-- Include(s) Ref. Number : 55.2
55.2 35***A1 O-RING 1
57 35***A1 PLUG; DIN 906-R1/4 1
58 35***A1 GUIDE 1
101 35***A1 BODY; Bottom 1
102 35***A1 COVER; Cover 1
103 35***A1 DIAPHRAGM 1
104 35***A1 SCREW 16
105 35***A1 PLUG 1
106 35***A1 SEAL; D114 1
107 82***48 PLUG 1
108 34***A1 RING; U8.7-14-1 1
109 35***A1 PIN; 10m6x24 DIN 6325 2
110 34***A1 O-RING; D23 1
201 35***A1 COVER 1
202 35***A1 HOUSING 1
203 35***A1 SPOOL 1
204 35***A1 GUIDE 1
205 35***A1 SPOOL 1
206 35***A1 GUIDE 1
207 35***A1 SPRING 1
208 35***A1 SHIM; S=1.5
208 35***A1 SHIM; S=1.25
208 35***A1 SHIM; S=0.9
209 35***A1 SEAL; D50 1
210 35***A1 SEAL; D55 1
211 35***A1 O-RING; D60 1
301 35***A1 VALVE BODY 1
302 35***A1 CHECK VALVE 1
303 35***A1 RING; B38 DIN7993 1
304 34***A1 PLUG; R1/4 1
305 35***A1 O-RING; D46 1
306 34***A1 O-RING; D44 1
35***A1 SEAL KIT
--***-- Include(s) Ref. Numbers : 33 To 47, 55.2, 106, 108, 110, 209, 210 And 211
