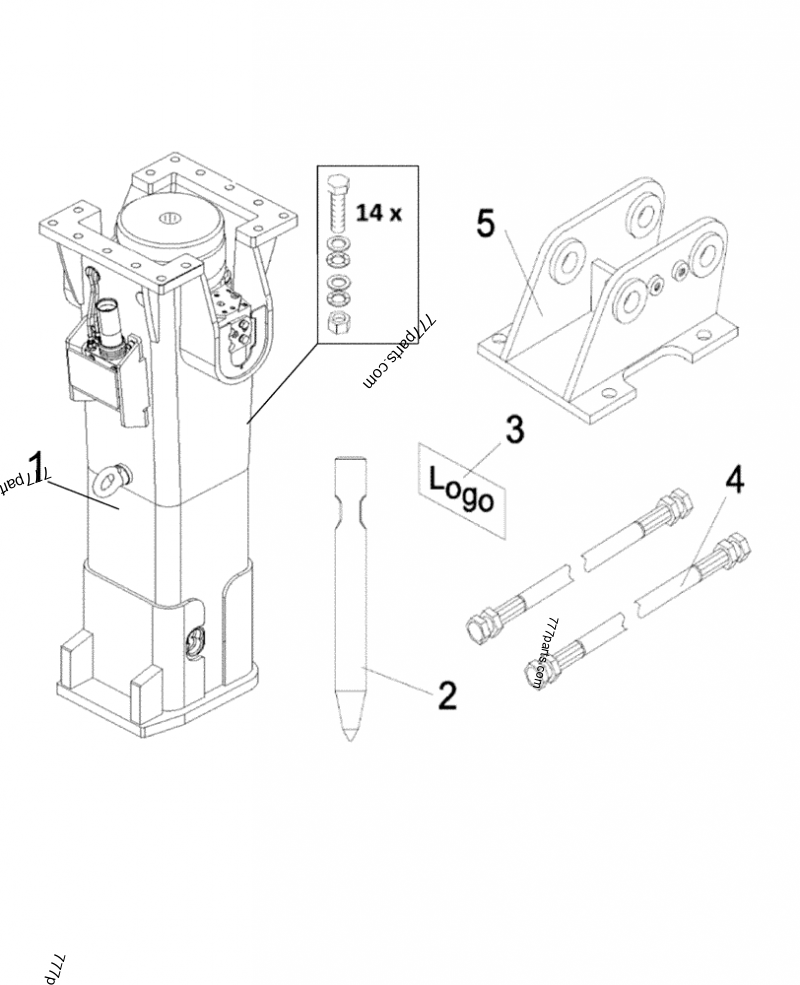

Case CB370S (HYDRAULIC HAMMER (1/05-))

Subscribe to get access to part numbers.

#	Part No.	Description	Qty
1	73***89	PICK HAMMER; CB370, Flange mount silenced	1
	--***--	Include(s) Ref. Numbers : 2,3 And See Page(s) : NH370-00 02 To NH370-00 09
2	73***18	CHISEL; L = 1120 mm, W = 112 Kg, D = 135 mm	1
	--***--	See Page : NH370-00 09
3	82***38	DECAL; CASE (10")	2
3	82***39	DECAL; NEW HOLLAND (10")	2
4	NSS	NOT SOLD SEPARAT; Hose Kit	1
5	41***A1	SUPPORT	1
	--***--	Direct Fit, Multifit Quick Coupler, Only for : CX240B, CX290B, CX250C, CX300C
5	45***A1	SUPPORT	1
	--***--	Direct Fit, Multifit Quick Coupler, Only for : CX350B, CX370B, CX350C, CX370C
5	82***50	SUPPORT	1
	--***--	Direct Fit, Only for : E215B, E245B
5	82***51	SUPPORT	1
	--***--	Direct Fit, Only for : E265B, E305B
5	73***39	ADAPTER	1
	--***--	Direct Fit, Only for : E215BJ, E215C Tier IV, E245C Tier IV
5	73***03	ADAPTER	1
	--***--	Direct Fit, Only for : E265BJ, E265C Tier IV
5	73***45	ADAPTER	1
	--***--	Direct Fit, Only for : E305C Tier IV
5	73***46	ADAPTER	1
	--***--	Direct Fit, Only for : E385BJ
5	36***A1	SUPPORT	1
