Case CB3750S (EXCAVATOR HYDRAULIC ROCKBREAKER (1/05-))

CE ATTACHMENTS Case CB3750S
/case/CB3750S/m419/s-968.html / 00 COMPLETE MACHINE / HYDRAULIC ROCKBREAKER - VERSION : BRETEC CB3750S
1188 / WX200

Select section

All

• All

Subsection

All

• All

Unit

Select group

13

13

14

128

10

103

12

6

122

107

7

9

126.1

1

130

126

120

3

2

129

11

5

104

104

121

103

121

131

8

104

15

107

127

128

17

14

16

106

105

14

121

Subscribe to get access to part numbers.

Unlock Access

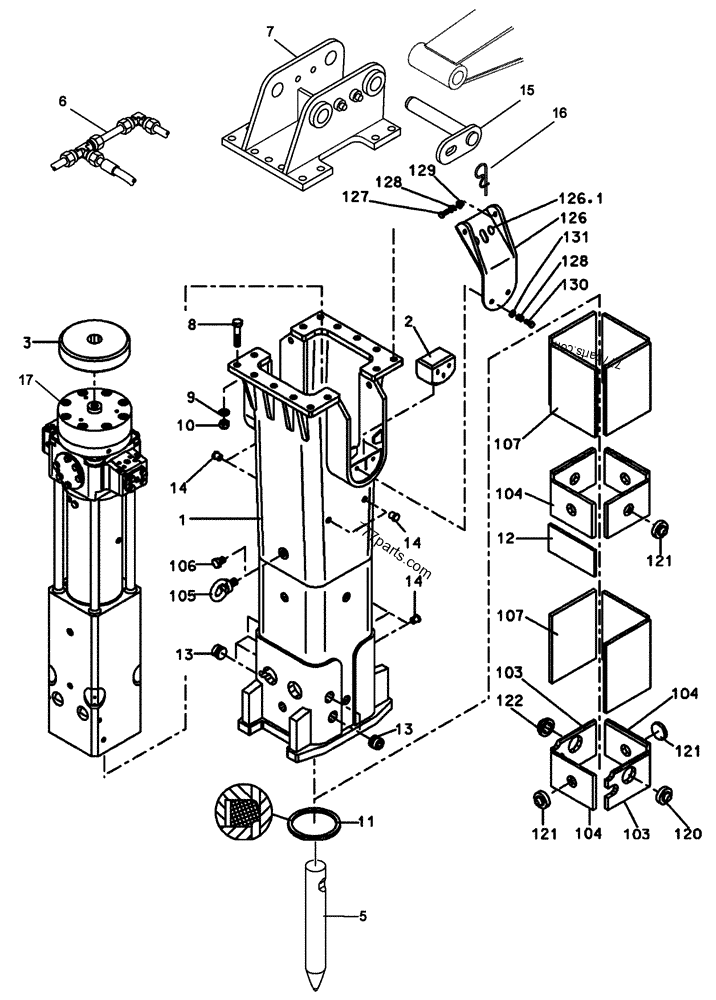

#	Part No.	Description	Qty
1	82***43	HOUSING	1
	--***--	Consists Of Ref. Numbers 103-131
2	35***A1	PAD	2
3	35***A1	HITCH DAMPER	1
5	REF	INSTRUCTION; Bit	1
	--***--	See Page(s) 07-25-00
6	REF	INSTRUCTION; Circuit, Hydraulic	1
	--***--	See Page(s) 07-13-00
7	35***A1	SUPPORT	1
8	35***A1	SCREW; M24 x 110; 12.9	14
9	35***A1	WASHER	14
10	35***A1	LOCK NUT; M24	14
11	35***A1	SEAL	1
12	35***A1	PLATE	1
13	35***A1	PLUG; dia 50	6
14	35***A1	PLUG; dia 25	7
15	A3***56	PIN,70mm OD x 440mm L; dia 70	2
16	C3***20	SPLIT PIN/SAFETY PIN	2
17	REF	INSTRUCTION; Mechanism	1
	--***--	See Page(s) 07-21-00-02
103	35***A1	PLATE	2
104	35***A1	PLATE	6
105	35***A1	LIFTING EYE	1
106	35***A1	SCREW; M30 x 40	1
107	35***A1	PLATE	7
120	35***A1	PIN	1
121	35***A1	PIN	6
122	35***A1	PIN	1
126	35***A1	PLATE	2
	--***--	Consists Of Ref. Number 126.1
126.1	35***A1	PLUG	2
127	35***A1	SCREW; M12 x 40	4
128	35***A1	LOCK WASHER; M12	8
129	35***A1	BUSHING	4
130	35***A1	SCREW; M12 x 30	4
131	35***A1	BUSHING	4
132	35***A1	LABEL	1
	--***--	Set Of 6
	--***--	Not Illustrated

HYDRAULIC ROCKBREAKER - VERSION : BRETEC CB3750S - CE ATTACHMENTS Case CB3750S (EXCAVATOR HYDRAULIC ROCKBREAKER (1/05-)) | 777parts.com
