Case CB45 (HYDRAULIC HAMMER (1/05-))

CE ATTACHMENTS Case CB45

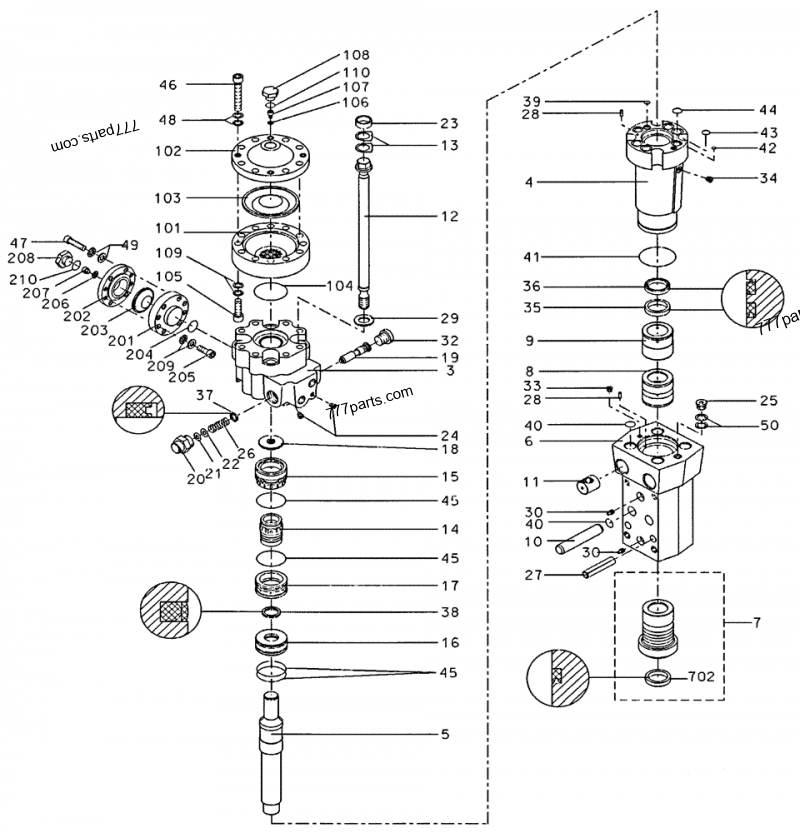

/case/CB45/m424/s-973.html / No Description / MECHANISM - HYDRAULIC HAMMER CB45 - CB45S - CB45P
CX31B, CX36B, CX40B, CX50B

Select section

All

• All

Subsection

All

• All

Unit

Select group

34

50

702

23

207

3

203

21

204

45

38

10

202

210

43

32

28

18

15

105

39

26

40

49

40

107

33

101

201

9

22

208

28

12

109

20

13

41

11

30

7

48

30

35

29

4

42

45

104

25

103

36

8

44

24

102

46

47

37

205

110

17

19

209

14

27

6

45

5

206

16

108

106

Subscribe to get access to part numbers.

Unlock Access

#	Part No.	Description	Qty
1	60***91	ACCUMULATOR; Low Pressure	1
	--***--	Include(s) Ref. Numbers : 101 To 110
2	60***91	ACCUMULATOR; High Pressure	1
	--***--	Include(s) Ref. Numbers : 201 To 210
3	60***M1	BODY	1
4	60***M1	BARREL	1
5	60***M1	PISTON	1
6	60***M1	HEAD	1
7	60***91	BUSHING	1
	--***--	Include(s) Ref. Number : 702
8	60***M1	BUSHING; Upper	1
9	60***M1	PLUG	1
10	60***M1	PIN; D28	2
11	60***M1	NUT	4
12	60***M1	TRUSS ROD	4
13	60***M1	PLATE	8
14	60***M1	CONTROL VALVE	1
15	60***M1	BUSHING; Assembly	1
16	60***M1	RING; Steering	1
17	60***M1	RING	1
18	60***M1	PLATE	1
19	60***M1	SPOOL	1
20	34***A1	CAP	1
21	34***A1	SHIM; s=1	1
22	34***A1	SHIM; s=0.5	1
23	60***M1	RING	4
24	34***A1	PLUG	2
25	34***A1	PLUG; R1/2	1
26	34***A1	SPRING; D26x65	1
27	44***A1	PIN; 21x100 DIN 1481	2
28	60***M1	PIN; 6m6x18 DIN 6325	2
29	60***M1	WASHER; D27	4
30	21***14	LUBE NIPPLE,1/4" NPTF; R1/8	2
32	34***A1	PLUG; R1	1
33	35***A1	PLUG; R3/8	1
34	34***A1	PLUG; R1/8	1
35	60***M1	GASKET; D50	1
36	60***M1	GASKET; D50	1
37	34***A1	SEAL; D22	1
38	60***M1	GASKET; D36	1
39	35***A1	O-RING; D14	1
40	60***M1	O-RING; D26	8
41	34***A1	O-RING; D95	1
42	60***M1	O-RING; D10	1
43	34***A1	O-RING; D20	2
44	35***A1	O-RING; D24	4
45	35***A1	O-RING; D75	4
46	60***M1	SCREW; M16x100-8.8 DIN 912	8
47	35***A1	HEX SOC SCREW; M12x60-8.8 DIN 912	4
48	34***A1	LOCK WASHER; M16 NORD-LOCK	8
49	35***A1	LOCK WASHER; M12 NORD-LOCK	4
50	34***A1	LOCK WASHER; M20 NORD-LOCK	1
101	60***M1	BODY; Bottom	1
102	60***M1	COVER	1
103	60***M1	DIAPHRAGM	1
104	34***A1	O-RING; D85	1
105	60***M1	SCREW; M16x50-8.8 DIN 912	4
106	34***A1	RING; U8.7-14-1	1
107	34***A1	PLUG	1
108	34***A1	PLUG	1
109	34***A1	LOCK WASHER; M16 NORD-LOCK	4
110	34***A1	O-RING; D23	1
201	60***M1	BODY	1
202	60***M1	COVER	1
203	60***M1	DIAPHRAGM	1
204	60***M1	O-RING; D57	1
205	35***A1	HEX SOC SCREW; M12x40-8.8 DIN 912	4
206	34***A1	RING; U8.7-14-1	1
207	34***A1	PLUG	1
208	34***A1	PLUG	1
209	35***A1	LOCK WASHER; M12 NORD-LOCK	4
210	34***A1	O-RING; D23	1
702	60***M1	GASKET; D50	1
	60***91	SEAL KIT	1
	--***--	Include(s) Ref. Numbers : 35 To 45, 104, 106, 110, 204, 206, 210, 702
