Case CB5200 (EXCAVATOR HYDRAULIC ROCKBREAKER (1/05-))

CE ATTACHMENTS Case CB5200
/case/CB5200/m426/s-975.html / 00 COMPLETE MACHINE / HYDRAULIC ROCKBREAKER - VERSION : BRETEC CB5200
9046 Dipperstick : 2.50 m - 98-1/2 in

Select section

All

• All

Subsection

All

• All

Unit

Select group

2

1

12

3

120

117

108

116

10

4

107

108

106

8

11

9

7

6

5

105

122

107

108

121

108

13

6

108

Subscribe to get access to part numbers.

Unlock Access

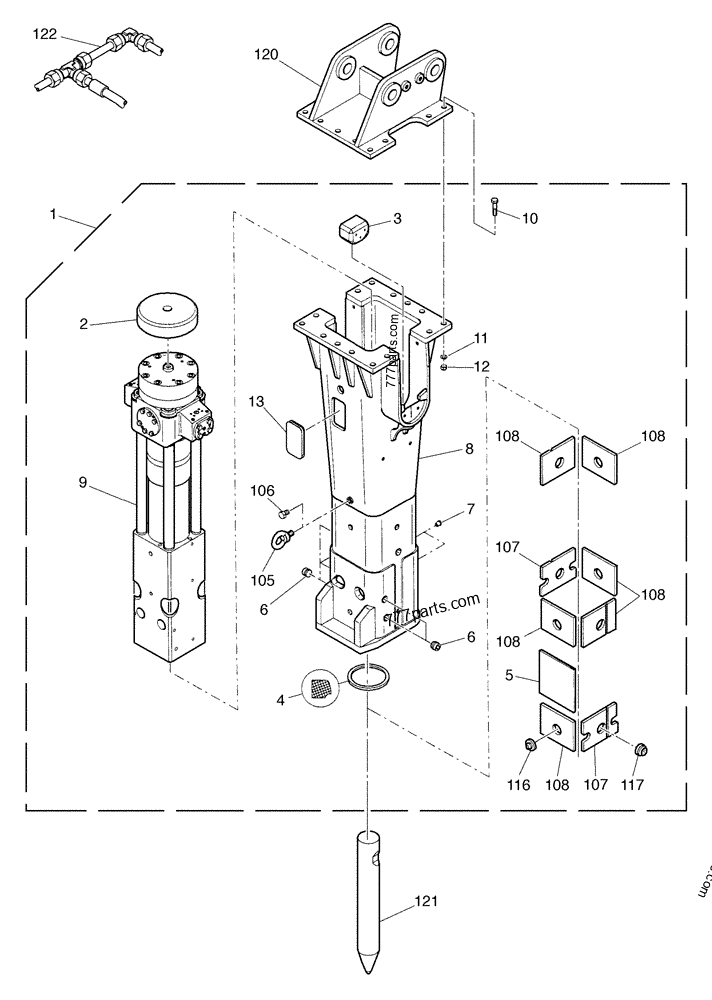

#	Part No.	Description	Qty
1	36***A1	TOOL	1
	--***--	Consists Of Ref. Numbers 2-13, 105-118
2	38***A1	HITCH DAMPER	1
3	38***A1	SKID/SHOE	2
4	38***A1	SEAL	1
5	38***A1	PLATE	1
6	35***A1	PLUG; dia 50	6
7	35***A1	PLUG; dia 25	2
8	38***A1	HOUSING	1
	--***--	Consists Of Ref. Numbers 105-117
9	--***--	Mechanism	1
	--***--	See Page(s) 09-07-00-01
10	38***A1	SCREW,Hex, M36 x 140mm, Cl 8.8; M36 x 140	14
11	38***A1	WASHER	14
12	38***A1	LOCK NUT; M36	14
13	35***A1	PLUG	2
105	35***A1	LIFTING EYE	1
106	35***A1	SCREW; M30 x 40	1
107	38***A1	PLATE	2
108	38***A1	PLATE	6
116	35***A1	PIN	7
117	35***A1	PIN	1
118	38***A1	SET OF PARTS	1
	--***--	Set Of 6
	--***--	Not Illustrated
120	36***A1	SUPPORT	1
121	REF	INSTRUCTION; Bit	1
	--***--	See Page(s) 09-11-00
122	REF	INSTRUCTION; Circuit, Hydraulic	1
	--***--	See Page(s) 09-05-00
