Case CB5200 (EXCAVATOR HYDRAULIC ROCKBREAKER (1/05-))

CE ATTACHMENTS Case CB5200
/case/CB5200/m426/s-975.html / 00 COMPLETE MACHINE / MECHANISM - HYDRAULIC ROCKBREAKER - VERSION : BRETEC CB5200
9046

Select section

  • All

Subsection

  • All

Unit

305
202
13
22
35
47
411
33
412
29
7
6
103
36
208
415
150
302
101
37
404
33A
48
106
47
38
38
17
10
21
204
36
100
42
205
150
413
35
51
13
410
48
58
33
400
65
53
59
200
16
24
8
19
60
303
414
40
52
55
27
203
201
301
60
25
110
9
302
57
45
62
403
14
104
415
111
55
39
23
109
53
59
405
31
49
62
50
306
304
30
51
209
402
152
58
102
54
34
12
105
302
302
39
300
207
28
36
46
408
18
108
401
43
57
20
66
26
44
5
407
36
107
206
41
210
11
409
32
151

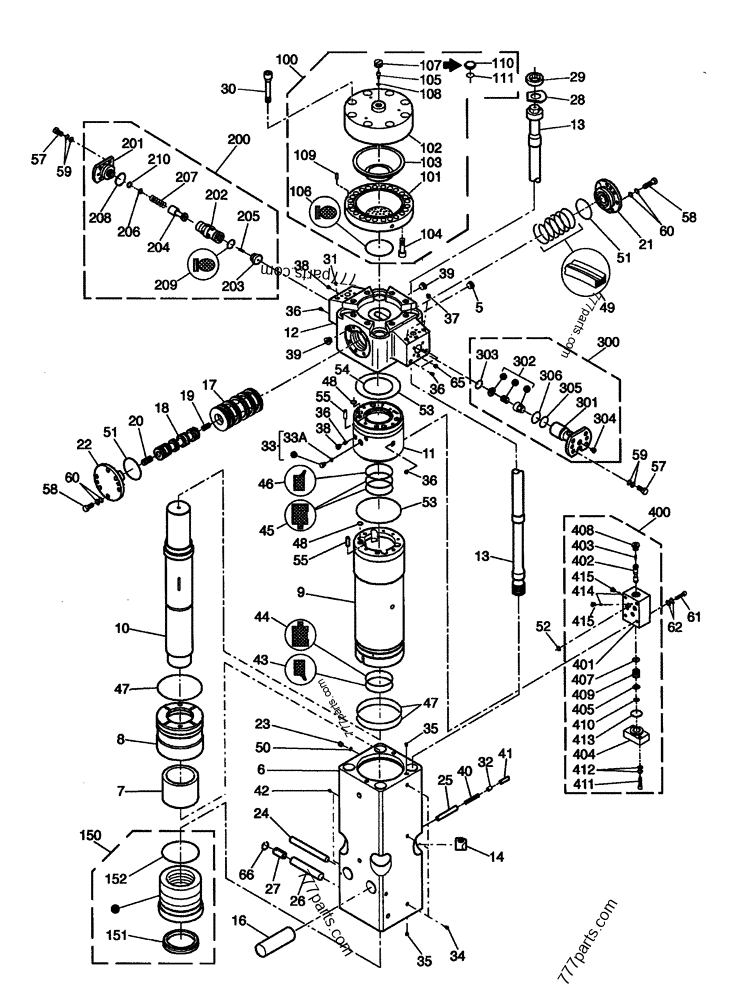

Part diagram MECHANISM - HYDRAULIC ROCKBREAKER - VERSION : BRETEC CB5200 - CE ATTACHMENTS Case CB5200 (EXCAVATOR HYDRAULIC ROCKBREAKER (1/05-)) | 777parts.com
