Case CB80S (HYDRAULIC HAMMER (1/05-))

Subscribe to get access to part numbers.

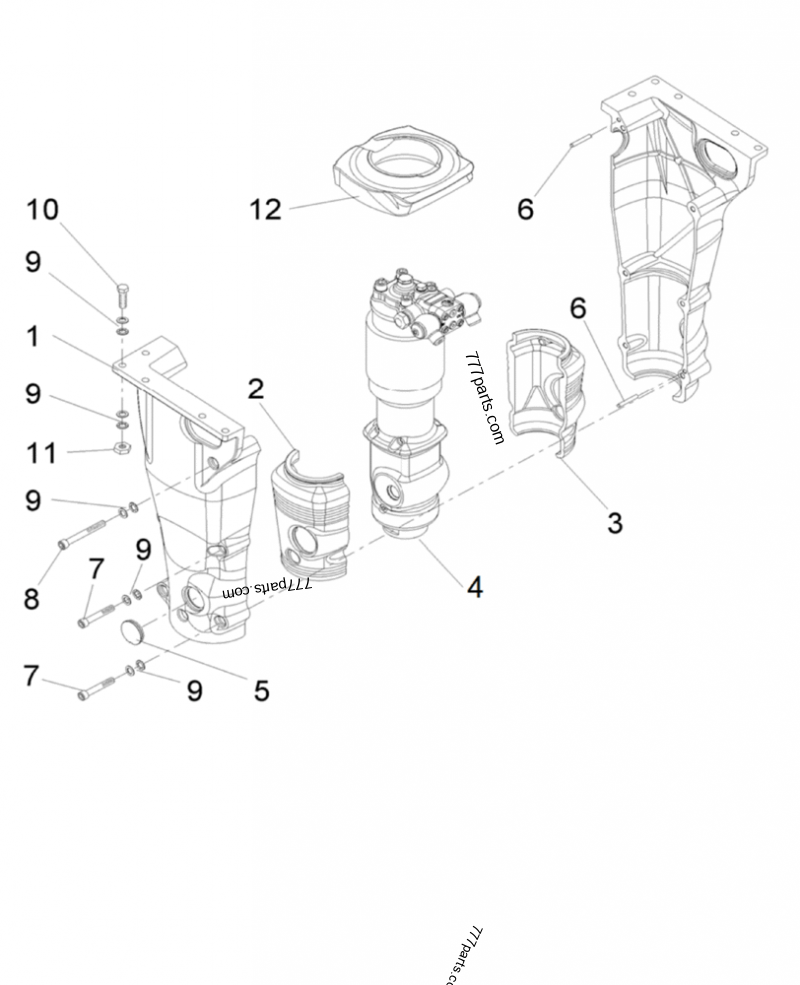

#	Part No.	Description	Qty
1	73***73	PLATE	1
2	73***68	DAMPER	1
3	73***69	DAMPER	1
4	NSS	NOT SOLD SEPARAT; Mechanism	1
	--***--	See Page(s) : NH080-00 03, NH080-00 04
5	73***83	PLUG	1
6	B5***53	PIN	2
7	60***M1	SCREW	4
8	73***18	SCREW	2
9	34***A1	LOCK WASHER	26
10	12***92	BOLT,M16 x 70mm, Cl 8.8	10
11	10***20	NUT,M16 x 2.0, Cl 8	10
12	73***70	GUARD	1
13	73***74	LABEL; Label Set	1
