Case WX95 TIER 3 (WHEELED EXCAVATOR (1/08-12/12))

WHEELED EXCAVATORS Case WX95 TIER 3
/case/WX95+TIER+3/m766/s-1410.html / 19 OPTIONS / COLD START - OPTIONAL CODE 72117768

Select section

Subsection

Unit

2
14
1
2
1
3
4
3
2
1
5
3
0
12
13
7
A
8
11
2
3
10
6
3
2
9
1

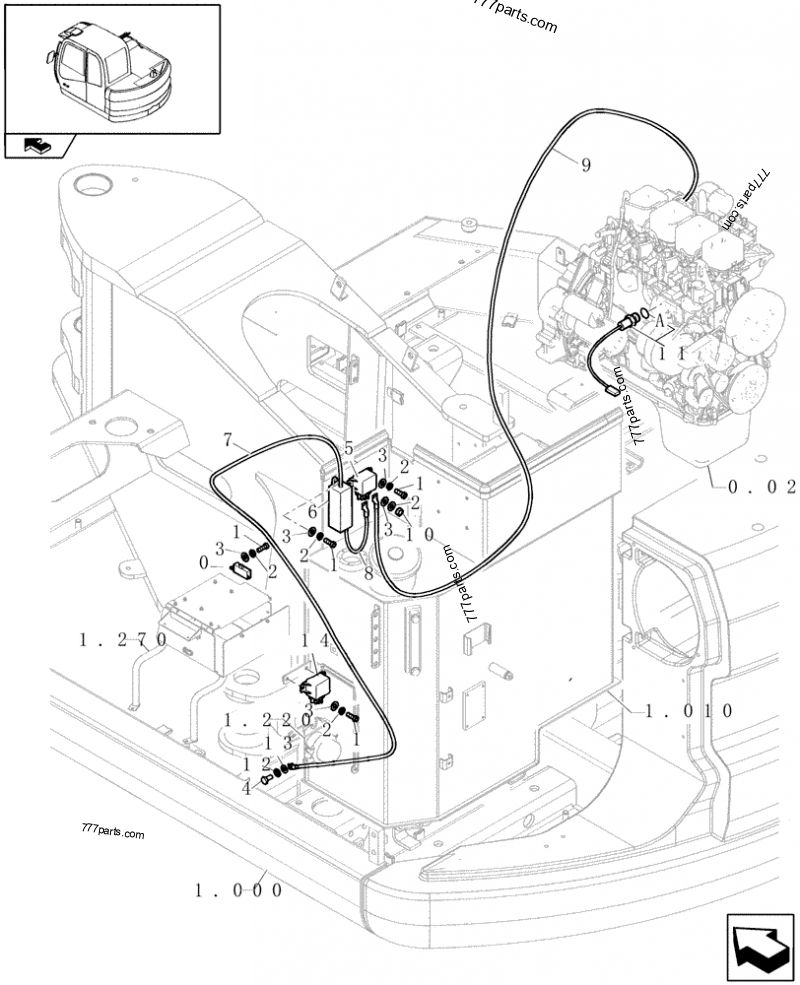

Part diagram COLD START - OPTIONAL CODE 72117768 - WHEELED EXCAVATORS Case WX95 TIER 3 (WHEELED EXCAVATOR (1/08-12/12)) | 777parts.com
# Part No. Description Qty
0 50***02 KIT 1
1 14***34 HEX SOC SCREW,M6 x 20mm, Cl 10.9, Full Thd; 6X14 8
2 10***74 LOCK WASHER; 6 10
3 14***31 WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk 10
4 16***34 SCREW,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd 1
5 71***77 RELAY,24V, 150A; 24V-150A 1
6 71***14 FUSE BOX; - ASSY 1
7 72***69 ELECTRIC CABLE 1
8 72***70 ELECTRIC CABLE 1
9 72***71 ELECTRIC CABLE 1
10 15***21 NUT,Hex, M6, 5.20mm High, Cl 10 2
11 72***19 HYD CONNECTOR; - ASSY 1
11A 71***62 O-RING 1
12 10***74 LOCK WASHER,M8 1
13 14***31 WASHER,8.4mm ID x 17mm OD x 1.6mm Thk 1
14 71***89 RELAY,24V, 50A 1
